Westminster Bars – Double Rail

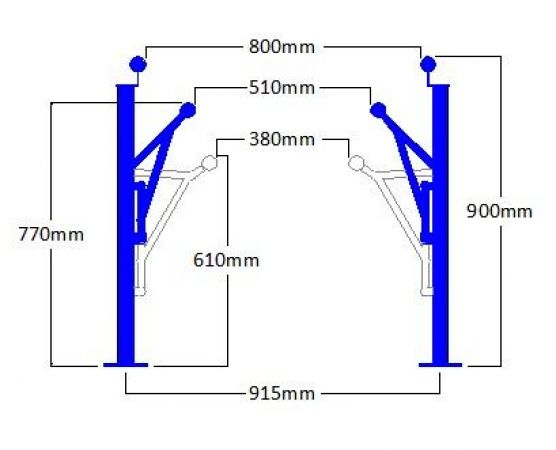

The Westminster double handrail design features a fixed handrail on each side at a height of 900mm with the addition of a lower second handrail with pivoting adjustment to provide adjustable height from 610mm to 770mm.

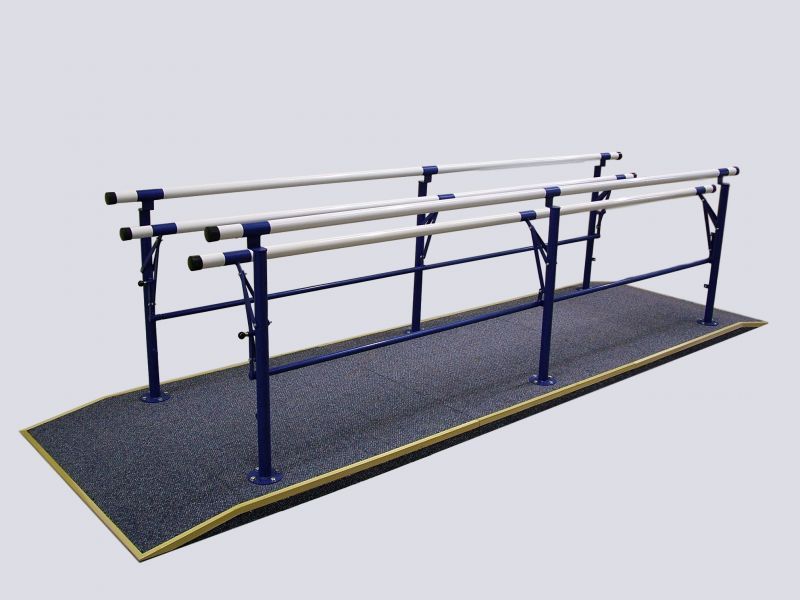

These double handrail models are available in 3 standard lengths for permanent floor fixing or they can be provided mounted onto a wooden base construction (optional) for environments where floor fixing is either not suitable or not preferred.

Max user weight

• 200kg (31st.) Fixed Handrail
• 140kg (22st.) Adjustable Handrail
• Handrail diameter: 45mm
• Fixed upper rail height: 900mm
• Min adjustable rail height: 610mm
• Maximum adjustable rail height: 770mm
• Slip resistant "non sparkle" floor surface or anti-static carpet
• Inclined at both ends
• Three handrail height settings
• Three handrail width settings

Product Numbers	Length 1.8m	Length 3.3m	Length 4.8m
Westminster Bars	E010A	E010B	E010C
Optional Carpet Base	E010A / CB	E010B / CB	E010C / CB
Optional Vinyl Base	E010A / VB	E010B / VB	E010C / VB

Supplied flat packed

Dimensions

	Product Number	Length	Width	Height
Westminster Bars	E010A	1830mm	1040mm	900mm
	E010B	3355mm	1040mm	900mm
	EO10C	4880mm	1040mm	900mm
Optional Base	E010A/CB E010A/VB	2375mm	1175mm	75mm
	E010B/CB E010B/VB	3885mm	1175mm	75mm
	E010C/CB E010C/VB	5420mm	1175mm	75mm

Freight Dimensions

	Product Number	Length	Width	Height	Total Weight
Stanchion	E010A	1030mm	840mm	230mm
Handrails		1500mm	150mm	125mm	33kg
Stanchions	E010B	1030mm	840mm	230mm
Handrails		1550mm	220mm	125mm	44kg
Stanchions	E010C	1030mm	840mm	230mm
Handrails		2300mm	220mm	125mm	54kg
with Optional Base	E010A	1600mm	1200mm	475mm	95kg
	E010B	1600mm	1200mm	550mm	135kg
	E010C	2000mm	1200mm	550mm	160kg
