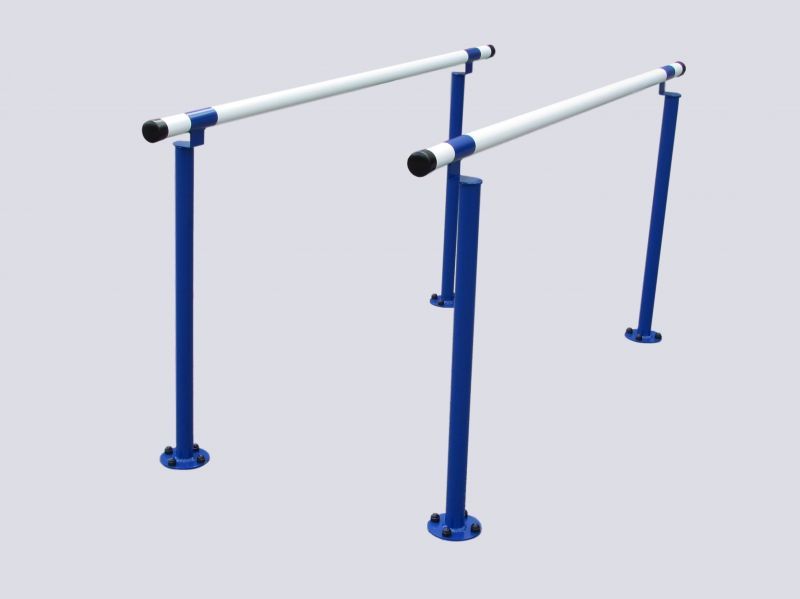

Westminster Bars - Single Rail
This model has a single handrail on each side at a fixed height of 900mm and is available in 3 standard lengths for permanent floor fixing or they can be provided mounted onto a wooden base construction (optional) with non slip flooring for environments where floor fixing is either not suitable or not preferred.- Maximum user weight 200kg (31st.)
- Handrail diameter 45mm
- Handrail height 900mm
- Strong and rigid
- Slip resistant "non sparkle" floor surface or Anti-static carpet
- Inclined at both ends
| Product Numbers | Length 1.8m | Length 3.3m |
Length 4.8m |
| Westminster Bars |
E010E | E010F | E010G |
| Optional Carpet Base | E010E / CB | E010F / CB | E010G / CB |
| Optional Vinyl Base | E010E / VB | E010F / VB | E010G /VB |
Supplied flat packed
Dimensions
| Product Number | Length | Width | Height | |
| Westminster Bars | E010E | 1830mm | 1040mm | 900mm |
| E010F | 3355mm | 1040mm | 900mm | |
| E010G | 4880mm | 1040mm | 900mm | |
| Base | E010E/CB E010E/VB |
2375mm | 1175mm | 75mm |
| E010F/CB E010F/VB |
3885mm | 1175mm | 75mm | |
| E010G/CB E010G/VB |
5420mm | 1175mm | 75mm |
Freight Dimensions
| Product Number | Length | Width | Height | Total Weight | |
| Stanchion | E010E | 1030mm | 840mm | 230mm | |
| Handrails | 1500mm | 125mm | 60mm | 11kg | |
| Stanchion | E010F | 1030mm | 840mm | 230mm | |
| Handrails | 1550mm | 125mm | 125mm | 18kg | |
| Stanchion | E010G | 1030mm | 840mm | 230mm | |
| Handrails | 2300mm | 125mm | 125mm | 20kg | |
| with Optional Base | E010E | 1600mm | 1200mm | 400mm | 75kg |
| E010F | 1600mm | 1200mm | 500mm | 110kg | |
| E010G | 2000mm | 1200mm | 500mm | 135kg |
